Tef-Gel

AX22TEFGEL

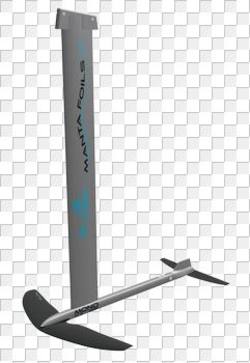

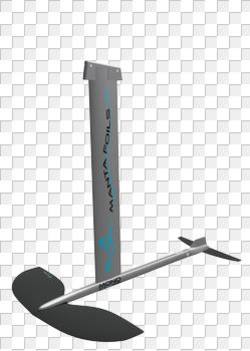

Tef-Gel is used to prevent aluminum corrosion. It should be applied on Aluminum Hydro Foils like the WASZP and Manta Foils, screws & assemblies.

Not required for arrow..



Tef-Gel 10g Tube Surf FX

10gram Toothpaste Tube



1. The function of Tef-Gel in eliminating dissimilar metal corrosion is the elimination of electrolytes from entering the interface of the metallic surfaces.

Tef-Gel paste contains 40% PTFE powder and 0% volatile solvents, no silicones or petroleum solvents to evaporate, which would leave voids for electrolytes to be drawn into creating a galvanic cell. When both surfaces are coated and mated with Tef-Gel there are no voids for electrolytes (saltwater) to be drawn in by capillary action over extended periods of time.



EXAMPLE:

** Bolt with nut or lock nut. Bolt into tapped aluminum, steel, stainless steel, inconel.
Use mascara brush, bottle brush, or toothbrush to apply a thin coat of Tef-Gel to both the threaded hole and the bolt threads and tighten. (Torque requirements may have to be altered according to application of thread lubricants).

**. Bedding surfaces: A closely mating surface (10 mils .010 or closer) can be protected from capillary action by applying a thin coat of Tef-Gel with brush, toothbrush, or plastic scraper and assembling the parts and cleaning excess product with mineral spirits or WD-40.

Tef-Gel does not electrically insulate hardware. The PTFE (40%) is ultra fine powder that will extrude out of the contact area and into the voids of the surrounding areas.

Tef-Gel applied between electrical contacts and connectors does not increase the resistance of the connections even at hundreds of amps, maintaining the integrity of EMI shielding.



 The function of Tef-Gel in eliminating seizing galling and friction welding of stainless steel, inconel, and other nickel alloys.



EXAMPLE:

Tef-Gel applied to both mating surfaces of nuts and bolts or threaded holes and bolts leaves a layer of 40% solid PTFE within the thread interface, which works as friction barrier.

Tef-Gel, which contains 0% volatile solvents, will no evaporate, cold flow, or dry out, giving protection many years later when hardware must be dissembled.



Buy Tef-Gel in NZ.
