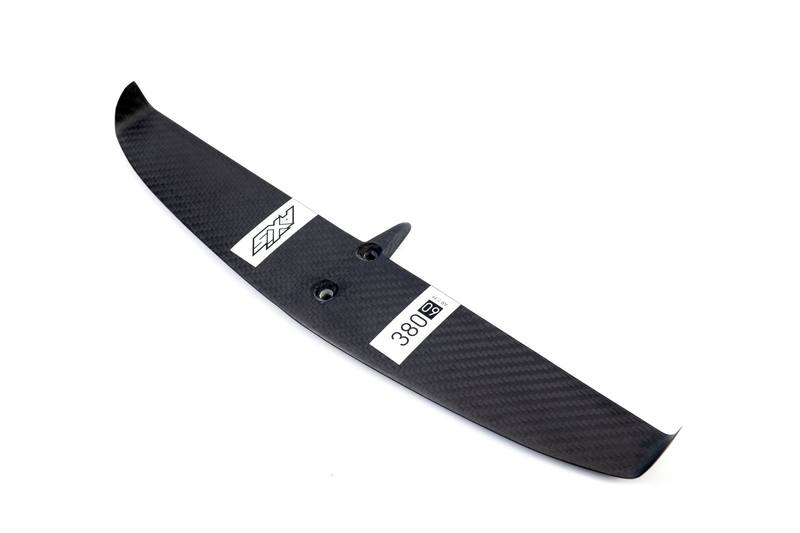

Axis SPEED 380mm Carbon Rear Wing

AX22RWING-380/60



New for 2021, Narrow (only 60mm chord), High Aspect Ratio 7.99AR, flatter foil section, and 17mm winglets on the tips for more stability while hard carving. FAST and high performance.

It will take your ride to the next level.


Some of our pros love the 380 with the AXIS PNG 910 and the Crazyshort fuselage. It's also an amazing winging rear wing. No matter what your foiling sport is, the 380 will make it fast.

Check out the video below from Huntington Beach, pumping and hunting for bumps on the above setup.

WINGSPAN: 380 mm / 14.96 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 7.99

ACTUAL AREA : 193.04 cm² / 29.92 IN²

PROJECTED AREA: 180.62 cm² / 28 IN²

VOLUME: 69.11 cm³ / 4.22 IN³

Assembly

What screws to mount wing to the fuselage:



Rear Wing

Front Screw

Rear Screw

500mm x 90mm

M6 x 25mm

M6 x 25mm

440mm x 90mm

M6 x 25mm

M6 x 25mm

400mm x 90mm

M6 x 25mm

M6 x 25mm

460mm x 60mm

M6 x 22mm

M6 x 22mm

400mm x 60mm

M6 x 22mm

M6 x 22mm

420mm x 60mm

M6 x 22mm

M6 x 22mm

380mm x 60mm

M6 x 22mm

M6 x 22mm

390mm x 80mm

M6 x 25mm

M6 x 25mm

370mm x 80mm

M6 x 25mm

M6 x 25mm

340mm x 80mm

M6 x 25mm

M6 x 25mm

500mm x 90mm

M6 x 25mm

M6 x 25mm



Buy Axis SPEED 380mm Carbon Rear Wing in NZ.
