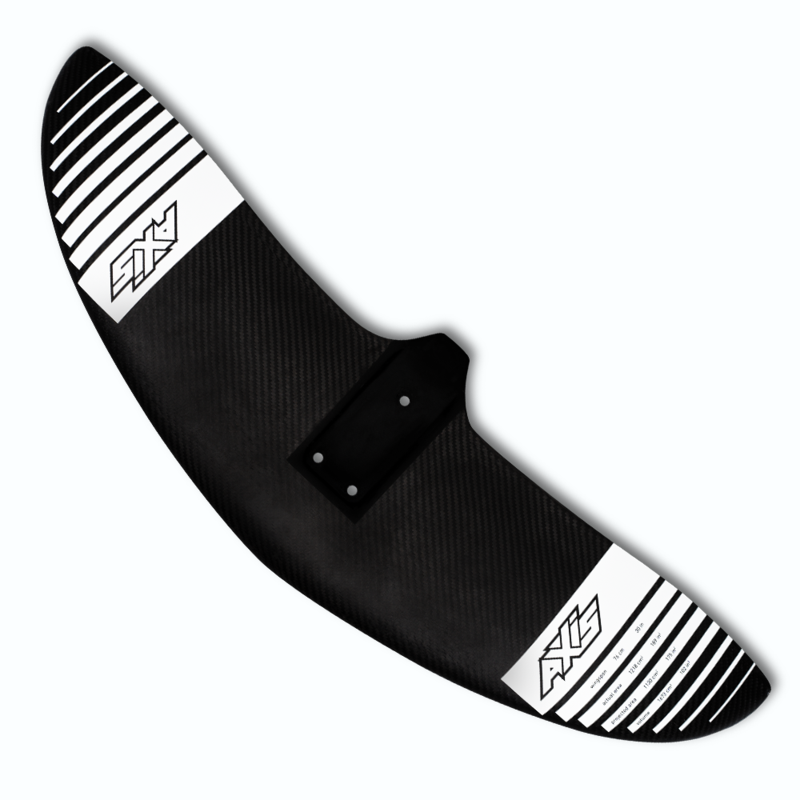

Axis SP 760mm Carbon Front Wing

AX22SP760



The AXIS SP 760 Carbon front wing was designed with Surf Foiling in mind. As the medium size of the new Surf Performance wings, the 760 allows you to handle more juice in bigger and steeper conditions, while maintain control and loose turning. The 760 will be your choice when the waves are sucky and steep or close together with lots of link ups. Full skatepark mode.

Both the 760 and 860 (the bigger wing of the surf family), sit very well in the pocket. They don't blast you too far out, like some other wings do. These are true surf wings with good pumpability.

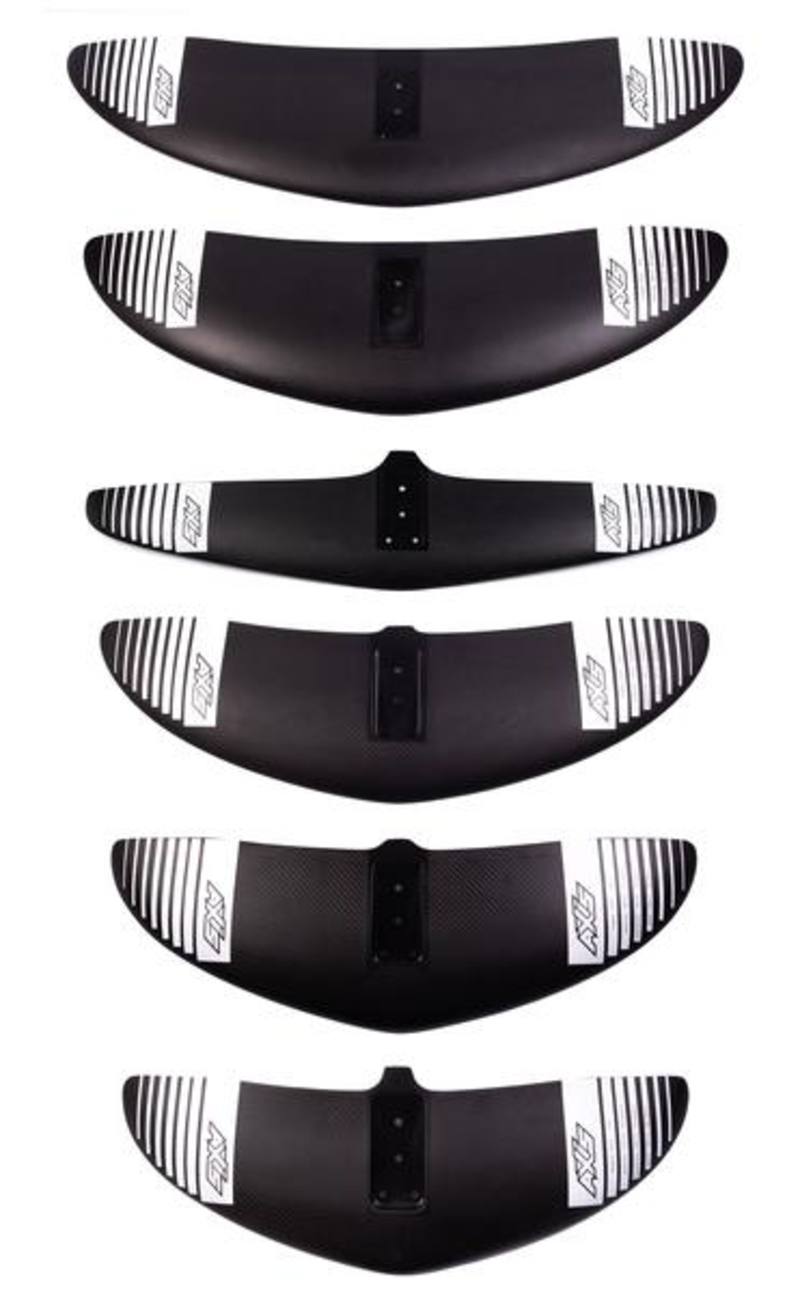

You can throw the Surf Performance wings (660, 760, 860) around a lot more in the waves which we love so much. And due to their deep V design, they won't throw you too fast ahead of the wave. They are much easier to keep in the zone.

Other than prone, the AXIS SP 760 carbon wing is a fantastic wave and cruise style kite foiling wing. You can ride is as slow as you want, turns on a dime, and you can still push it on those faster downwinders. A perfect one wing kite setup.

Ideal for:

Prone foiling bigger waves

Tow-in foiling

Kite Foiling freeride or waves

AXIS SP 760

WINGSPAN: 760mm / 76cm (30 inches)

CHORD: 190mm (0.787 inches)

ACTUAL AREA: 1218 square cm / 189 square inches

PROJECTED AREA: 1130 square cm / 175 square inches

VOLUME: 1673 cubic cm / 102 cubic inches



Recommended use:

Surf Foiling in Medium wave

Tow Foiling in Medium wave

Kite foiling / carving / wave riding



Suggested Rear Wing:

Rear Wing 340mm Regular Carbon

Rear Wing 370mm Regular Carbon

Rear Wing 400mm Regular Carbon

Rear Wing 460mm Flat High Aspect Carbon



Suggested Fuselage lengths:

Red Short (fast turning, with good balance of control)

Red Ultrashort (super loose and fast turning - intermediate level riders)

Red Crazyshort (insanely loose and fun turning - advanced level riders)

Assembly

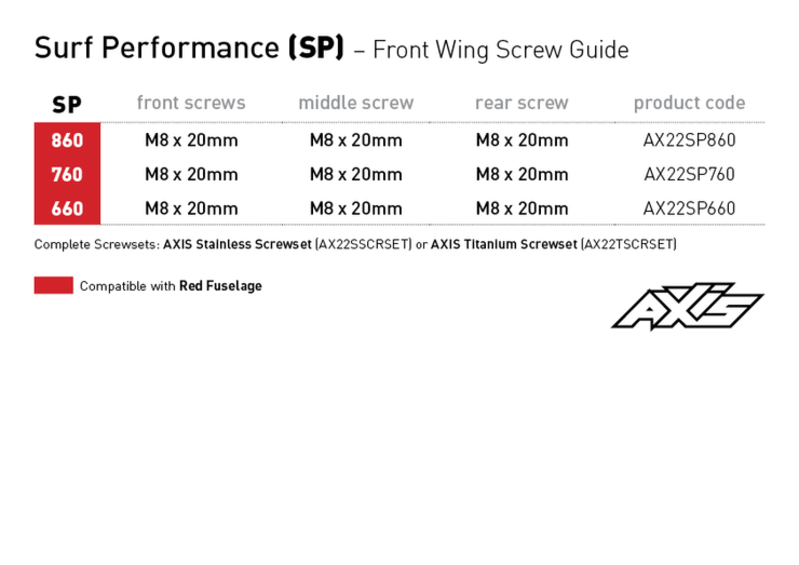

What screws to mount wing to the fuselage:

SP Wing Front screws Middle screw Rear screw
860mm x 180mm M8 x 20mm M8 x 20mm M8 x 20mm
760mm x 190mm M8 x 20mm M8 x 20mm M8 x 20mm
660mm x 200mm M8 x 20mm M8 x 20mm M8 x 20mm



Buy Axis SP 760mm Carbon Front Wing in NZ.
