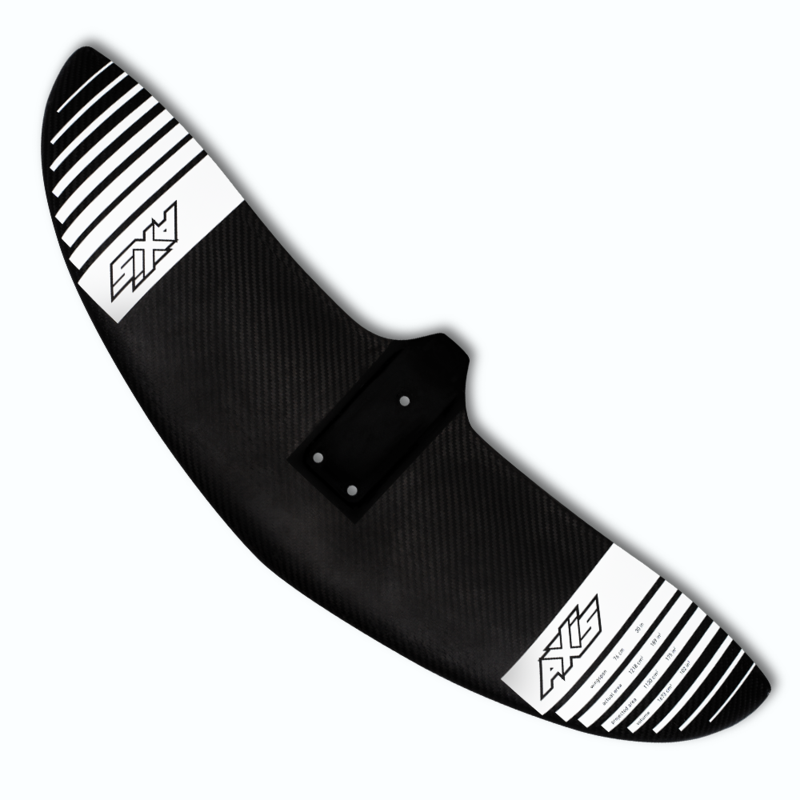

Axis SP 660mm Carbon Front Wing


The AXIS SP 660 Carbon front wing was designed with Surf Foiling in mind. As the smaller size of the new Surf Performance wings, the SP 660 addresses the need of experienced surf foilers to ride bigger waves, with loose side to side turning and higher speeds.

The SP 660 Carbon front wing turns fast and effortlessly. It gives the rider the closest possible feeling of a riding a surf board. It's balance neutral, w/out requiring more front foot pressure as you carve or surf waves at speed.

The SP 660 Carbon front wing can equally ride slow and fast w/out any change on performance.

Ideal for:

Prone foiling bigger waves

Tow-in foiling

Kite Foiling freeride or waves


WINGSPAN: 660mm (26 inches)

CHORD: 200mm (0.787 inches)

ACTUAL AREA 1113 square cm / 173 square inches

PROJECTED AREA: 1034 square cm / 160 square inches

VOLUME: 1582 cubic cm / 97 cubic inches

Recommended use:

Surf Foiling in Medium / Large wave

Tow Foiling in Medium / Large wave

KITE foiling / carving / wave riding

Suggested Rear Wing:

Rear Wing 370mm Regular Carbon

Rear Wing 400mm Regular Carbon

Suggested Fuselage lengths:

Red Short (fast turning, with good balance of control)

Red Ultrashort (super loose and fast turning - advanced level riders)

Customer Quote:
"Super responsive wing, feels like a go cart though turns but also very smooth in chop/whitewater & forgiving when close to breaching."


What screws to mount wing to the fuselage:

SP Wing Front screws Middle screw Rear screw
860mm x 180mm M8 x 20mm M8 x 20mm M8 x 20mm
760mm x 190mm M8 x 20mm M8 x 20mm M8 x 20mm
660mm x 200mm M8 x 20mm M8 x 20mm M8 x 20mm

Buy Axis SP 660mm Carbon Front Wing in NZ.
