Axis PNG 1150mm Carbon Front Wing

AX22PNG1150



The AXIS PNG 1150 Carbon Front wing is the biggest of our newest generation of high aspect wings, focusing on longest and most efficient gliding and pumping.

The AXIS PNG 1150, together with the 1300, 1010 and the 910, 910B and 850 form our Pump and Glide wing family.



PNG 1150 Carbon Hydrofoil Wing

The Pump and Glide wings are designed to be easy and early to lift for their size. The have tons of control, and feel comfortable for most levels of riding. Our Glide wings pump unreal, and glide effortlessly and endlessly. And they are fast wings, but their focus is not to be the fastest wing on the market. But instead, to be the easiest high aspect wing that almost everyone can ride, and can improve their level of riding right away.

The PNG 1150 is the biggest wing of the Glide collection. It's in fact the longest wingspan wing we have ever made! We wanted a wing that will lift very very early, and would glide endlessly, w/out slowing down.





PNG 1150 Carbon Hydrofoil Wing





The PNG 1150 wing was designed to dominate the smallest foiling conditions. From light wind WING Surfing, to tiny bumps SUP and SURF foiling, to effortless lift behind the BOAT, and DOCK starts and PUMPING, the AXIS 1150 performs like no other high aspect wing ever dreamed of. The amount of glide and pumping ability of the AXIS 1150 is tremendous. And probably this is why our testers nominated the AXIS 1150 as the WING SURFING wing.

The PNG 1150 carbon wing connects to the red fuselages with 3 x M8, 20mm screws. At 1150mm wingspan the AXIS 1150 is a massive wing, nearly twice as stiff as the 1010, benefiting from the AXIS PNG rigidity and stiffness of engineering and construction.





PNG 1150 Carbon Hydrofoil Wing

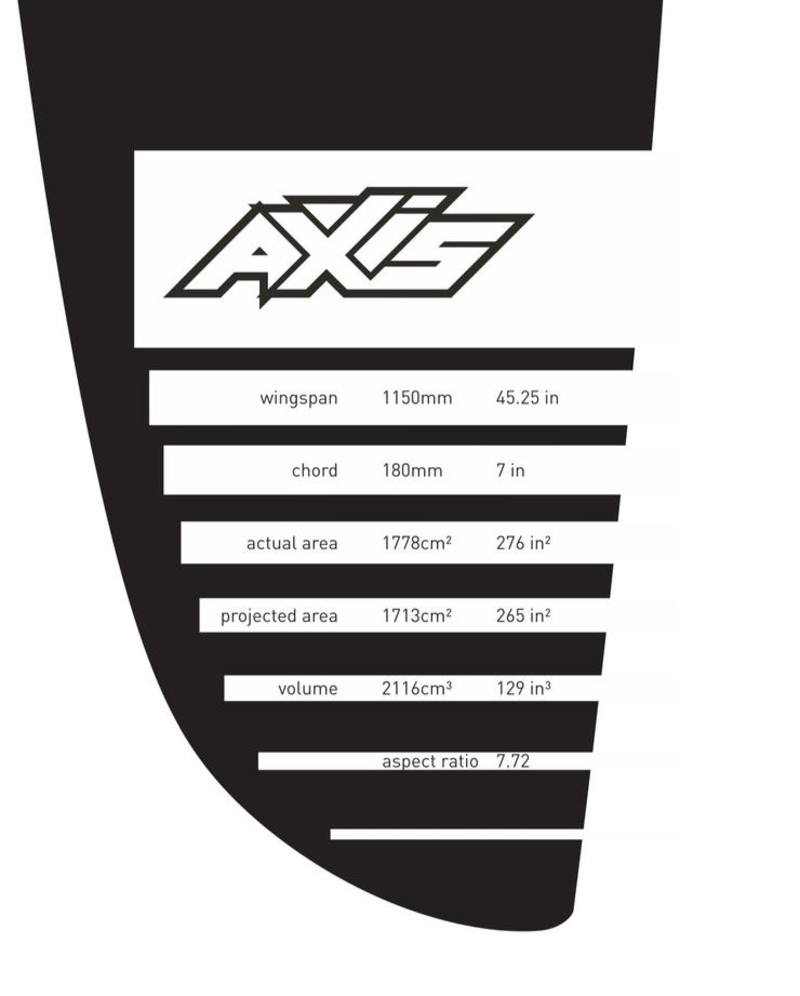

As with every AXIS front wing, the graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.

AXIS PNG 1150

Technical Data:

WINGSPAN: 1150 mm / 45.25 inches

MAX CHORD: 180mm

ASPECT RATIO: 7.72

ACTUAL AREA 1778 square cm / 276 square inches

PROJECTED AREA: 1713 square cm / 265 square inches

VOLUME: 2116 cubic cm / 129 cubic inches

Recommended use:

WING Surfing for all levels and light / medium conditions

Downwinding - Lighter wind / smaller waves

SUP / Surf - Tiny bumps and endless gliding

Wake foiling - Early lift / easiest pump

Pump Foiling - Endless

Windsurf foiling - early and super easy lift



Rear Wing Options:

  • 500mm Carbon for max control, stability and slower ride (entry levels)
  • 460mm Carbon for high speed and loose turning (advanced)
  • 420mm Carbon for the ultimate performance (speed and turning - intermediate +). One of our favorite rear wings for fast riding and carving.
  • 440mm Carbon for control and stability (all levels)
  • 400mm Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
  • 390mm Carbon for Wing and Surf with good turning control and additional glide
  • 370mm Carbon for loose feel and fast turning, with less stability (intermediate).
  • 340mm Carbon for even looser feel and even less drag and more speed. (advanced)
  • 500mm Anhedral Carbon specific to windsurf foiling

When you purchase the AXIS PNG 1150mm carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.



Assembly

What screws to mount wing to the fuselage:

PNG Wing Front Screws Middle Screw Rear Screw
1300mm x 180mm M8 x 20mm no screw needed M8 x 20mm
1150mm x 180mm M8 x 20mm no screw needed M8 x 20mm
1010mm x 170mm M8 x 20mm no screw needed M8 x 20mm
910mm x 160mm M8 x 20mm no screw needed M8 x 20mm
910mm x 160mm M6 x 14mm M8 x 20mm M8 x 20mm
850mm x 150mm M6 x 14mm M8 x 20mm M8 x 20mm



Buy Axis PNG 1150mm Carbon Front Wing in NZ.
