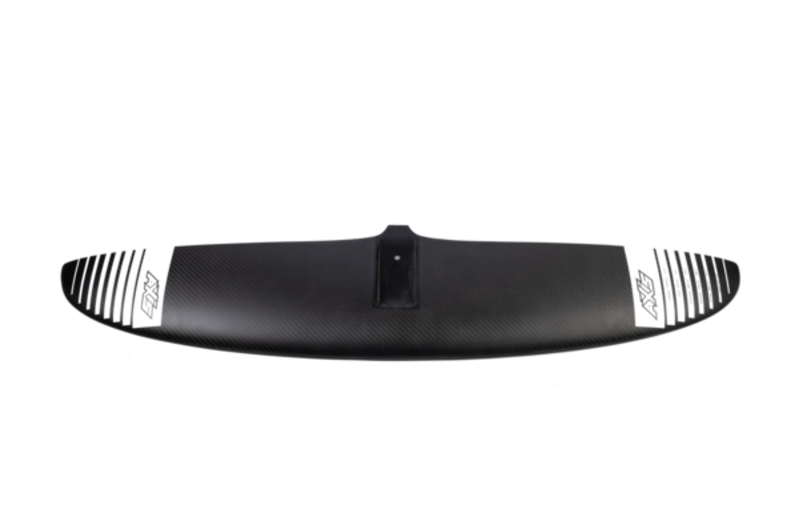

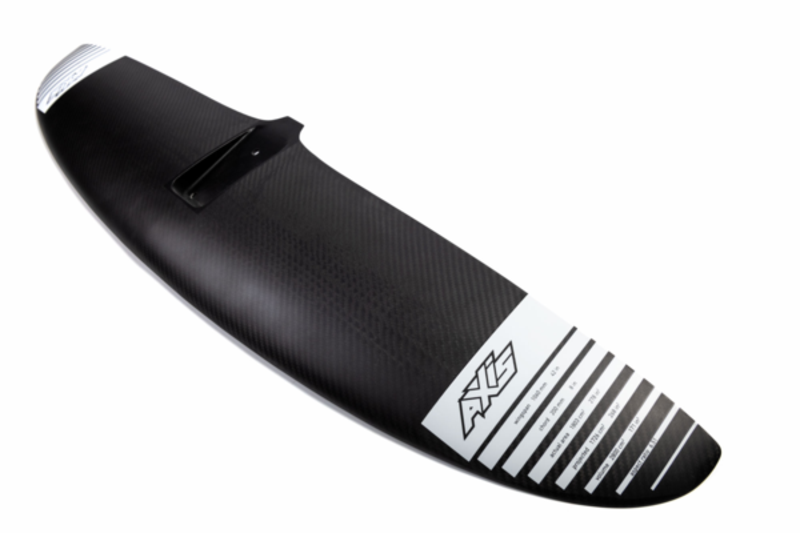

Axis BSC 1060mm Carbon Front Wing

AX22BSC1060



The Broad Spectrum Carve (BSC) wings are a new direction into easy to ride wings, with good amount of performance embedded to the design. Perfect for all round riding including entry level riders.

The larger sizes are ideal for PUMPING, SUP, WINGING, WAKE. As we go down on sizing, 890-810-740 are high performance PRONE, WINGING and KITE wings.

For the BSC wings we use a refined foil section, with extensive speed range, and stability. This makes the BSC wings ideal for all levels of riders and conditions. The 890 / 810 / 740 sizes are designed for performance PRONE, WINGING and KITE foiling. These wings are stable, fast and turn on a dime.

The 1120 and 1060 are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size. The 970 could be the all levels wing for all styles and levels of riding. The 890-810-740 are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

As with every AXIS front wing, the graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.

Compatible with the Red fuselages.

AXIS BSC 1060 Carbon Wing

Technical Data:

WINGSPAN: 1060 mm / 42 inches

MAX CHORD: 200mm / 8 inches

ASPECT RATIO: 6.51

ACTUAL AREA 1803 square cm / 278 square inches

PROJECTED AREA: 1726 square cm / 268 square inches

VOLUME: 2800 cubic cm / 171 cubic inches

Recommended use:

WING Surfing for all levels and medium + conditions. Super stable for the size

Downwinding - Medium+ conditions and intermediate+ level

SUP / Surf - Medium+ conditions and intermediate level

Wake foiling - Intermediate+ level

Pump foiling - Intermediate+ level

Windsurf foiling - Intermediate+ level

Kite foiling - Ideal for all styles, levels and conditions

Here is what the experts say:

The BSC wings are incredibly easy to ride. Bigger sizes ideal for lighter days and bigger dudes. Smaller sizes more surfy and faster. Medium AR makes them a bit slower but still faster than last years all rounds.



Rear Wing Options:

  • 500mm Carbon for max control, stability and slower ride (entry levels)
  • 460mm Carbon for high speed and loose turning (advanced)
  • 420mm Carbon for the ultimate performance (speed and turning - intermediate +). One of our favorite rear wings for fast riding and carving.
  • 440mm Carbon for control and stability (all levels)
  • 400mm Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
  • 390mm Carbon for Wing and Surf with good turning control and additional glide
  • 370mm Carbon for loose feel and fast turning, with less stability (intermediate). The rear wing that does it all
  • 340mm Carbon for even looser feel and even less drag and more speed. (advanced)
  • 500mm Anhedral Carbon specific to windsurf foiling



When you purchase an AXIS carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.



Assembly

What screws to mount wing to the fuselage -

BSC Wing

Front Screws

Middle Screw

Rear Screw

1120mm x 220mm

M8 x 20mm

M8 x 20mm

M8 x 20mm

1060mm x 200mm

M8 x 20mm

M8 x 20mm

M8 x 20mm

970mm x 190mm

M8 x 20mm

M8 x 20mm

M8 x 20mm

890mm x 170mm

M6 x 18mm

M8 x 20mm

M8 x 20mm

810mm x 155mm

M6 x 14mm

M8 x 20mm

M8 x 20mm

740mm x 140mm

M6 x 14mm

M8 x 20mm

M8 x 20mm
