Axis HPS 930mm Carbon Front Wing

AX22HPS930


SAVE

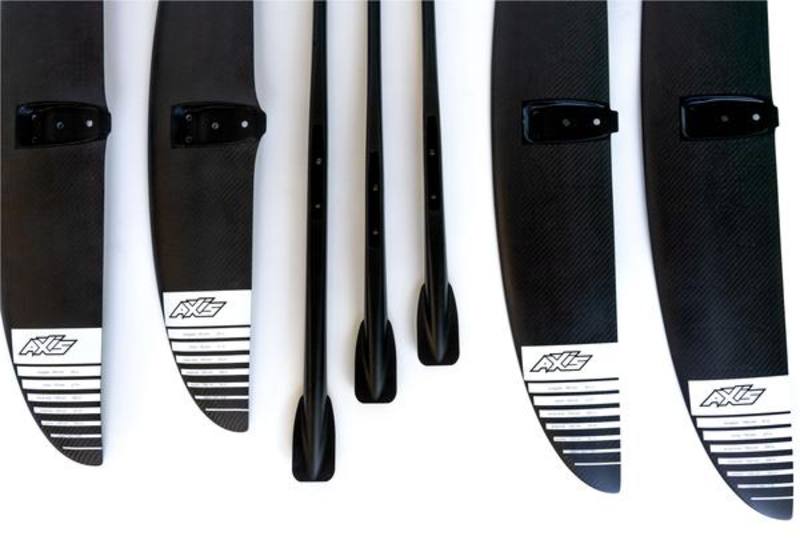

The High Performance Speed (HPS) wings are FAST. Designed for the ultimate in performance, but yet still usable by most levels of riders. Since the HPS wings use their own foil section with less camber and narrower chord, we developed a special fuselage that will accommodate all the HPS and future performance front wings.

The HPS wings are the ideal performance wings for WINGING and DOWNWIND. High level riders they also SUP, PRONE, WAKE and WINDSURF foil the bigger sizes, while the smaller sizes are perfect for TOW, freestyle WINGING and KITE foiling.

This is a new generation of front wings made for FAST performance riding, while it's still stable and predictable with enormous amount of glide and great turning.

The High Performance Speed series includes the following models/sizes:

1050mm wingspan x 170mm chord, and 7.55 aspect ratio
980mm wingspan x 160mm chord, and 7.49 aspect ratio
930mm wingspan x 155mm chord, and 7.34 aspect ratio
880mm wingspan x 150mm chord, and 7.17 aspect ratio
700mm wingspan x 160mm chord, and 5.63 aspect ratio

PLEASE NOTE:
THIS WING IS ONLY COMPATIBLE WITH THE BLACK FUSELAGES

AXIS B-Series 930mm HPS Carbon Wing

Technical Data:
WINGSPAN: 930 mm / 36.6 inches
MAX CHORD: 155mm / 6.1 inches
ASPECT RATIO: 7.34
ACTUAL AREA 1214 square cm / 188 sq inches
CAMBER (as % of CHORD): 2.5
VOLUME: 1228 cubic cm / 75 cubic inches

Recommended use:
WING Surfing for intermediate + and medium + wind conditions. It jumps huge.
Downwinding - Medium + wind and waves
SUP / Surf - medium bumps and endless gliding
Wake foiling - Intermediate + level.
Pump Foiling - when brought to its speed range it's endless
Windsurf foiling - amazing for all levels
Kite Foiling - Lighter winds, and smooth cruising at medium speeds

Here is what the experts say:
HPS are fast and perfect for wingding and downwinding. But good riders are surfing, SUP, downwinding, wake even dock starting them. Even kting the smaller HPS is a blast.
The AXIS HPS wings get their lift from speed - the take off is dramatic. Catches you by surprise the first time you take off. This high aspect ratio and the lower camber foil section, makes them perfomance oriented, but still comfortable for the intermediate levels.

Rear Wing Options:

  • 500mm Carbon for max control, stability and slower ride (entry levels)
  • 460mm Carbon for high speed and loose turning (advanced)
  • 420mm Carbon for the ultimate performance (speed and turning - intermediate +). One of our favorite rear wings for fast riding and carving.
  • 440mm Carbon for control and stability (all levels)
  • 400mm Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
  • 390mm Carbon for Wing and Surf with good turning control and additional glide
  • 370mm Carbon for loose feel and fast turning, with less stability (intermediate).
  • 340mm Carbon for even looser feel and even less drag and more speed. (advanced)
  • 500mm Anhedral Carbon specific to windsurf foiling

When you purchase an AXIS carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.



Assembly

What screws to mount wing to the fuselage:

HPS WING

Front Screws

Middle Screw

Rear Screw

1050mm x 170mm

M6 x 14mm

M8 x 20mm

M8 x 20mm

980mm x 160mm

M6 x 14mm

M8 x 20mm

M8 x 20mm

930mm x 155mm

M6 x 14mm

M8 x 16mm

M8 x 20mm

880mm x 150mm

M6 x 14mm

M8 x 20mm

M8 x 20mm

830mm x 145mm

M6 x 14mm

M8 x 16mm

M8 x 20mm

700mm x 160mm

M6 x 14mm

M8 x 16mm

M8 x 20mm

650mm x 140mm

M6 x 14mm

M8 x 16mm

M8 x 20mm



Buy Axis HPS 930mm Carbon Front Wing in NZ.
